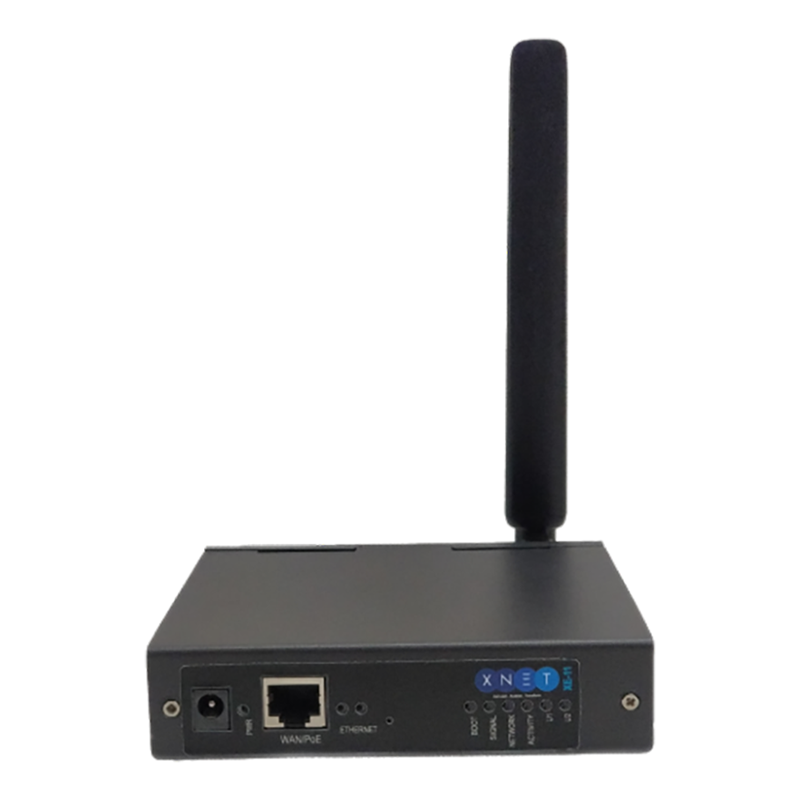

XE-11 Series
High speed, rugged edge computing LTE Router
Packed with a powerful dual-core CPU, aided by intelligent programmable Linux-based embedded software, host of Industrial protocols natively supported, and seamless integration with XNET Cloud, the XE series is a perfect choice for Enterprise, Industrial, and IoT deployments.
Device Specifications
Hardware Interfaces for XE-11
1 X 1Gbps Ethernet LAN Ports
1 X CAT 4 LTE Cellular
1 X Mini SIM
PD PoE over WAN interface
RS232 or RS485
HardwareDetails
CPU- 880MHz DualCore
Flash – 16MB, SD Card
RAM – 256MB
Cellular
LTE FDD: B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
TD-SCDMA: B34/B39
WCDMA: B1/B8
GSM: 900/1800MHz
Cellular DataRates
LTE CAT 4:
LTE FDD: Max 150Mbps (DL)/Max 50Mbps(UL)
LTE TDD: Max 130Mbps (DL)/Max 30Mbps(UL)
UMTS:
DC-HSDPA: Max 42Mbps(DL)
HSUPA: Max 5.76Mbps(UL)
WCDMA: Max 384Kbps (DL)/Max 384Kbps(UL)
GSM:
EDGE: Max 296Kbps(DL)/Max 236.8Kbps(UL)
GPRS: Max 107Kbps (DL)/Max 85.6Kbps(UL)
LED
Power / BootLED
Signal Strength
Device NetworkRegistration
Cellular Data Activity
LAN / WAN Data activity
Power
11-28 VDC
Max Power consumption:
XE11 – 6W
Dimensions
125mm X 110mm X 30mm
( excl. Antenna Connector)
Weight: 250 gms
Operating Temperature
-40 to +70 degree Celsius
Routing Features
DHCP Server, DHCP Client, Static Routes, Traffic Routing, Port Forwarding, Dynamic DNS, NAT
Security and Tunnelling
IPSec with IKEV1, IKEV2, Selectable encryption
schemes, Selectable Hash Algorithms, and Dead Peer Detection
OpenVPN Client, Open VPN Pas through
OpenSSL
Zone-Based Firewall
Stateful packet inspection and Sync Flood Protection
Sim Pin
Source / Destination IP address binding
Management
Web-based local and remote configuration
SNMP V1, V2, V3
Integrated XNET support
Industrial Protocol support
ModbusMaster
IEC 101 Master
IEC 104Master
Modbus to IEC 104 Convertor
IEC 101 to IEC 104 Convertor
OPC- UA (Planned)
Bacnet (Planned)
Connectivity Protocols
TCP/UDP/FTP/HTTP/MQTT/NTP/ICMP/HTTPS*/SMTP*/
FTPS*/SMTPS*
Programming Capabilities
Linux Operating System
Development APIs
PythonScripting
Shell Scripting
